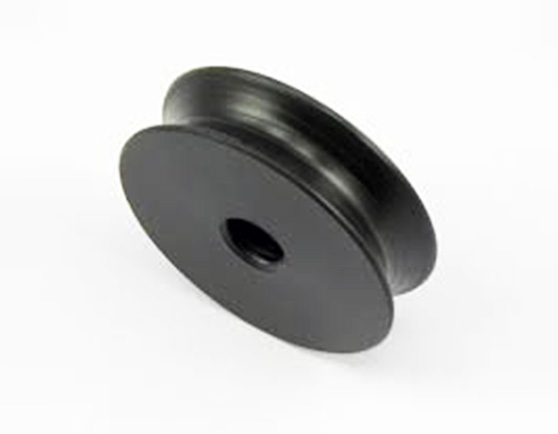

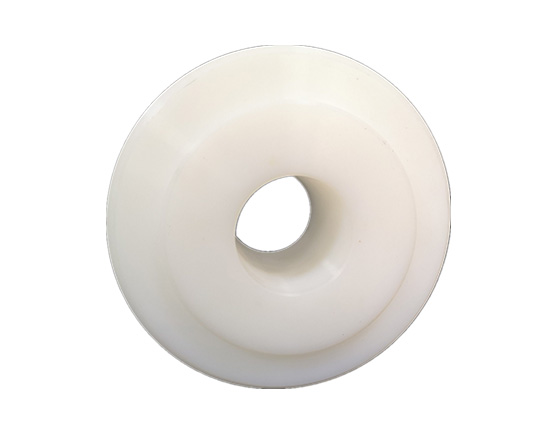

Standard round belts and V-belt idler pulleys are available. UHMWPE, which is impact resistant, makes superior line shaft pulleys.
We offer a wide variety of custom-designed UHMW pulleys that meet customer specifications. Our UHMW pulleys are self-lubricating and offer wear and noise reduction advantages over their metal counterparts. UHMW pulley features higher impact strength with more chemical resistance and display high abrasion resistance with near-zero water absorption.
| Item | Range |
|---|---|
| Outer diameter | 80 - 800 mm |
| Groove diameter | 60 - 760 mm |
| Groove depth | 10 - 60 mm |
| Thickness | 20 - 120 mm |
| Bore | 20 - 200 mm, keyed or plain |
| Bearing | Steel or bronze insert optional |
| Property | Value | Test method |
|---|---|---|
| Material | Virgin UHMWPE, 3.5 - 9.0 million g/mol | ASTM D4020 |
| Density | 0.93 - 0.945 g/cm3 | ISO 1183 |
| Tensile strength at yield | 20 - 25 MPa | ISO 527 |
| Elongation at break | > 300 % | ISO 527 |
| Charpy impact, notched | > 100 kJ/m2 | ISO 179 |
| Shore D hardness | 62 - 66 | ISO 868 |
| Coefficient of friction vs steel | 0.10 - 0.22 (dry) | ISO 8295 |
| Service temperature | -169 C to +80 C | - |
| Water absorption | < 0.01 % | ISO 62 |
