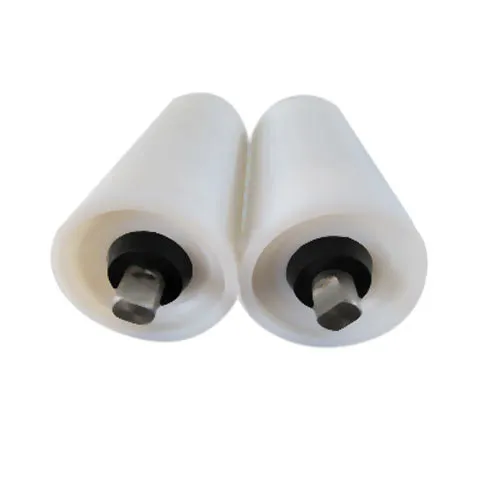

Ultra-high molecular weight polyethylene (UHMWPE) pulley idlers are a premium conveyor system component. Due to UHMWPE’s excellent wear resistance, low coefficient of friction and excellent self-lubricating properties, it becomes an ideal material choice for pulley rollers. UHMWPE pulley rollers have the following...
UHMWPE pulley rollers have the following features and advantages:
1. Wear resistance: UHMWPE material has excellent wear resistance, which can resist continuous friction and wear and prolong service life.
2. Self-lubricating property: UHMWPE has a smooth surface and has good self-lubricating properties, reducing friction and energy loss.
3. Low noise: Due to the low friction coefficient of UHMWPE, the drum idler produces less noise during operation, creating a quieter working environment.
4. Lightweight: Compared with other materials, UHMWPE pulley rollers have a lower density, which makes the entire conveying system lighter and saves energy.
5. High strength: Although UHMWPE has a low density, it has high strength and can withstand large loads and impacts.
We provide high-quality UHMWPE pulley rollers, which are suitable for various conveying systems, such as logistics, mining, construction and other fields. Our products are built for durability and reliability to meet your needs and provide long-lasting, consistent performance.
If you have any needs or needs for further understanding of UHMWPE pulley rollers, please feel free to contact us, we will wholeheartedly provide you with professional support and solutions.
UHMWPE Pulley Idler is a high-performance conveyor system component widely used in material conveying and handling in various industries. It is manufactured from Ultra High Molecular Weight Polyethylene (UHMWPE) material for excellent abrasion, chemical and impact resistance.
The main advantages of UHMWPE pulley rollers include:
Wear resistance: UHMWPE has extremely high wear resistance and can be used for a long time in the environment of high load and frequent friction, reducing maintenance and replacement costs.
Low coefficient of friction: UHMWPE has a smooth surface and low coefficient of friction, which enables materials to pass more smoothly during conveying and reduces energy consumption.
Lightweight: Compared with traditional metal rollers, UHMWPE pulley rollers have a lower density, which makes the entire conveying system lighter and saves energy.
Self-lubrication: UHMWPE has good self-lubrication performance, which reduces the friction between the roller and the material, reduces noise and energy loss.
Chemical resistance: UHMWPE has good corrosion resistance to a variety of chemical substances, and can be used for a long time in harsh environments without damage.
We provide high-quality UHMWPE pulley rollers, which can be customized according to customers’ needs. Our products undergo strict quality control to ensure their durability and reliability. Whether in logistics, mining, construction or other fields, our UHMWPE pulley rollers can provide excellent performance and reliable operation for your conveying system.
In today's world of rising energy costs, the Anyang Ultrahigh's lightweight yet robust design helps reduce belt tension and power requirements - reducing your running costs.
Product Details
Diameters ranging from 89mm to 500mm (10 sizes)
Specifically developed for long life in heavy duty applications, UHMWPE-PE-HDPE rollers will reduce risk to your people and your belt. The composite roller is made from a reinforced polymer matrix which produces a lightweight, wear-resistant roller. UHMWPE-PE-HDPE rollers are low noise and belt friendly, with a high performance bearing housing to ensure there is no risk of end-cap walk over time.
SLWLw-sGIpswo4zRC_bAQaFUGT0MX03_a9v3dsgUi
google-site-verification: google1698a1cc89a72a27.html
| Item | Range |
|---|---|
| Roller diameter | 50 / 63.5 / 76 / 89 / 102 / 108 / 114 mm |
| Roller diameter | 127 / 133 / 140 / 152 / 159 / 165 / 194 mm |
| Shell thickness | 6 - 15 mm |
| Face length | 150 - 2400 mm |
| Shaft diameter | 20 / 25 / 30 / 35 / 40 / 50 mm |
| Bearing | 6204 / 6205 / 6206 / 6305 / 6306 / 6308 |
| Seal | Labyrinth or felt, triple labyrinth optional |
| Property | Value | Test method |
|---|---|---|
| Material | Virgin UHMWPE, 3.5 - 9.0 million g/mol | ASTM D4020 |
| Density | 0.93 - 0.945 g/cm3 | ISO 1183 |
| Tensile strength at yield | 20 - 25 MPa | ISO 527 |
| Elongation at break | > 300 % | ISO 527 |
| Charpy impact, notched | > 100 kJ/m2 | ISO 179 |
| Shore D hardness | 62 - 66 | ISO 868 |
| Coefficient of friction vs steel | 0.10 - 0.22 (dry) | ISO 8295 |
| Service temperature | -169 C to +80 C | - |
| Water absorption | < 0.01 % | ISO 62 |
